Vertical Induction Hardening Machine

1. Usage:

Vertical Induction Quenching Machine Tool is used to improve production method, productive efficiency and product quality; lower down work force cost and electricity cost by displacing the labor with equipment.

2.Principle：

Vertical Induction Quenching Machine Tool adopt with Servo system to position, with IGBT induction heating power to quench the work piece.

3. Working process

Start→ feeding by manual→auto heating and quenching→discharge by manual→enter material case

4. Working range and work efficiency

   A: This machine is used for steel bar quenching heat treatment;

   B: Steel rod diameter range:Φ15-100(customized);

   C: Steel rod length rang: 30-1500mm;

   D: Bottom size: 1000*1000mm

   E: Hardening depth:1-2mm

   F: Efficiency: about 5 seconds per piece accordingly

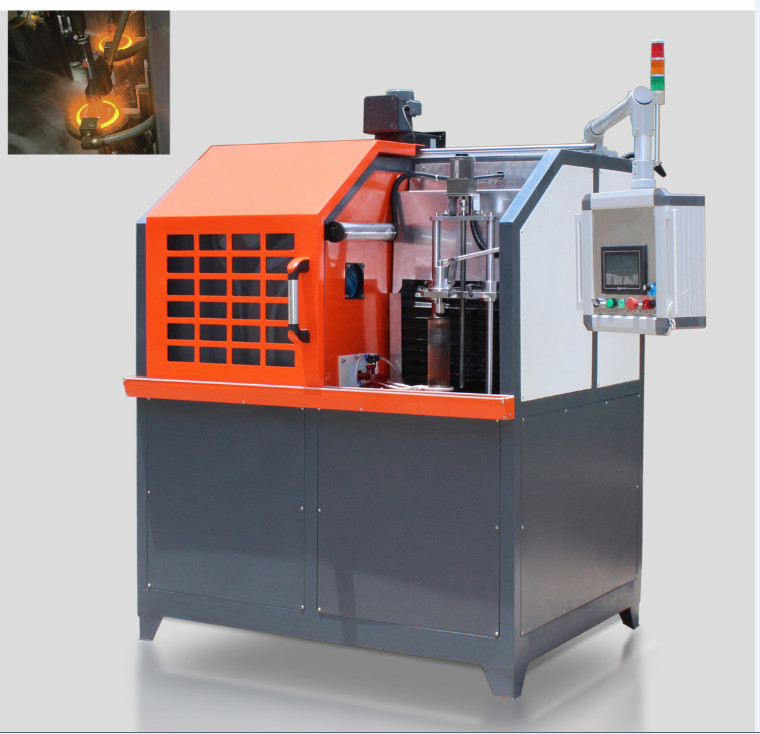

5. Structure diagram and description

1) Main machine frame is made of national standard polished material, and stainless steel and alloy materials.

2)Servo system：Working parts adopt with servomotor, rotating parts adopt adjustable motor, to protect the precision and the usage life of the machine.

3) Pneumatic part: all parts are made in Taiwan.

4) Electrical control system: PLC and touch screen control, operation knob with stable quality.

5) Induction power for quenching works:

   5.1 Hardening induction heating power: BJ-100AB (100KW, 30-80Khz) IGBT model
