BJY-60AB Induction Heating Machine

Home > Products > Induction Heater[20Khz-30Khz] > Induction Heater[20Khz-30Khz]

Product Name: BJY-60AB Induction Heating Machine
Release Date: 2017-12-05
Introductions:
Portable Induction BrazingUnits Main Features: With high frequency up to 1100-2000KHz the quenching thickness can be controlled lower than 1mm, and very thin and tiny parts can be easily heated. IGBT and current inverting technologies have......

Details

Ultrasonic Induction Heating Machine

Model	BJY-25AB	BJY-40AB	BJY-60AB	BJY-80AB	BJY-100AB	BJY-120AB	BJY-160AB
Output power	25KW	40KW	60KW	80KW	100KW	120KW	160KW
Fluctuating frequency	20-30KHZ	20-30KHZ	20-30KHZ	20-30KHZ	20-30KHZ	20-30KHZ	20-30KHZ
Work Voltage	Three Phases 380V 50 or 60HZ
Dutysycle	100%
Weight	37KG/32KG	37KG/32KG	54KG/42KG	80KG/60KG	90KG/65KG	100KG/65KG	120KG/75KG

Induction Heating Machine Main Features:

● Adopt IGBT technology,with all-round protective function;over voltage protect,lack of water protect,over current protect,phase failure protect,over heating protect and so on,so it greatly increase the reliability of the equipment.
● The equipment has many display function;current display,voltage display,time display,So the operation is more clear,it is good for guiding the design of induction coil and adjusting the capacitance.
● Small dimension,light weight,portable,Only l square meter
● 24-hour continuous smelt ability.
● Saving more than 20% energy,adopts electromagnetic mixing ,so the smelting is more even.
● Especially when heating non-magnetic condduction material such as stainless steel,copper,aluminum and industrial silicon,the smelting speed is very fast,effect of energy saving is better,so it reduce the cost when producing.

Main applications:

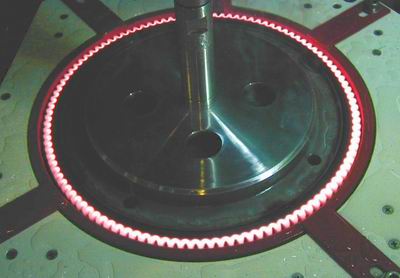

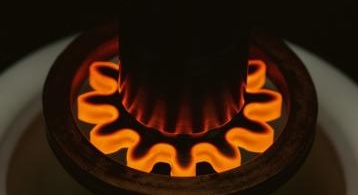

Heat treatment of gear and shaft.
Heating of wire smaller than 1mm
Floating melt for institute or college research and so on.
Surface quenching.
Brazing of copper bars
Heating of bullet shell
Floating melt with water cooled crucible
Annealing of wire continuously

Induction Heating Machine adopt IGBT technology,with all-round protective function;over voltage protect,lack of water protect,over current protect,phase failure protect,over heating protect and so on,so it greatly increase the reliability of the equipment.
The equipment has many display function;current display,voltage display,time display,So the operation is more clear,it is good for guiding the design of induction coil and adjusting the capacitance.Small dimension,light weight,portable,Only l square meter.24-hour continuous smelt ability. Saving more than 20% energy,adopts electromagnetic mixing ,so the smelting is more even. Especially when heating non-magnetic condduction material such as stainless steel,copper,aluminum and industrial silicon,the smelting speed is very fast,effect of energy saving is better,so it reduce the cost when producing.
